CHRYCE Passenger Elevator

CHRYCE Passenger Elevator

Standard cabin designs across the CH-K series, blending hairline stainless steel, mirror finishes, technology board and artificial marble for every commercial setting.

  • Energy Saving
  • Stable & Comfortable
  • Standard Cabin Library
  • Multi-layer Safety
  • High-Rise Ready
Back to Elevators

Overview

Standard cabin designs across the CH-K series, blending hairline stainless steel, mirror finishes, technology board and artificial marble for every commercial setting.

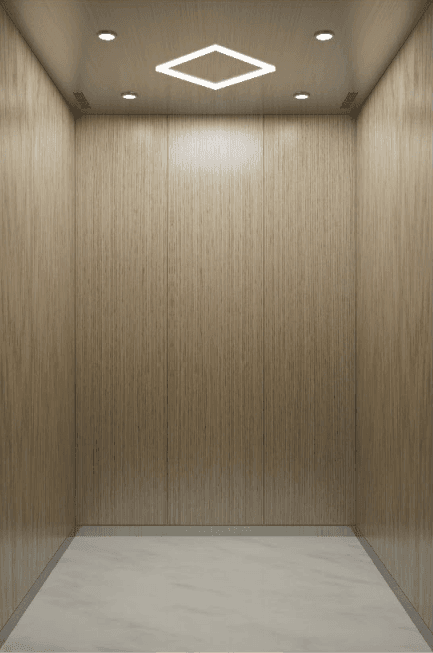

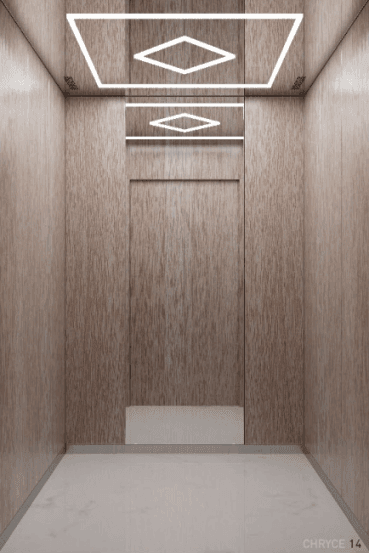

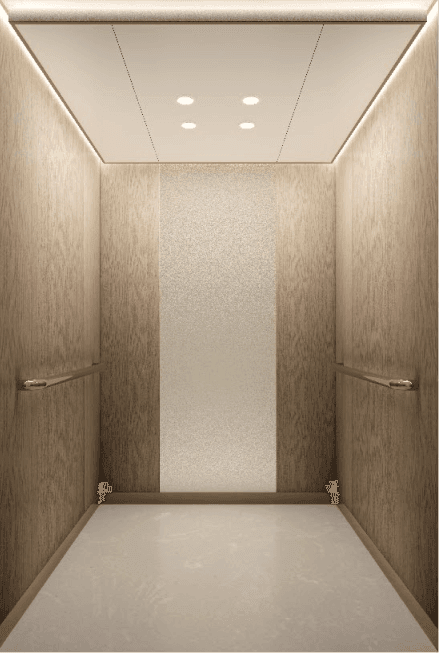

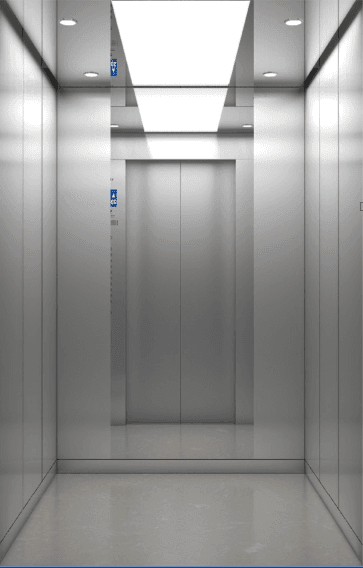

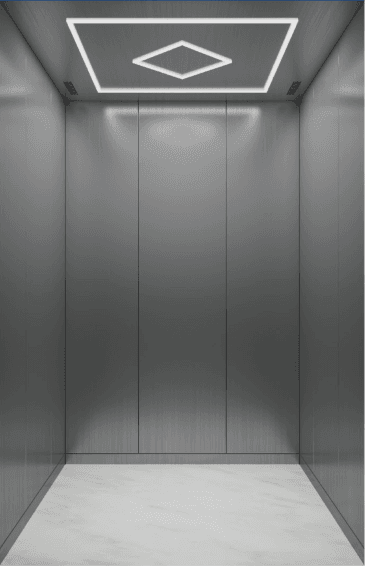

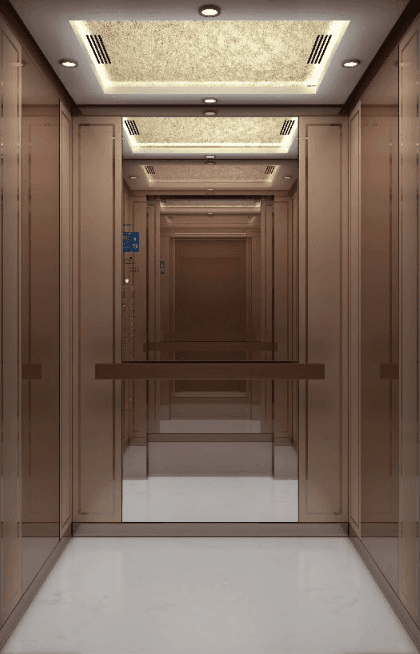

  • Six standard cabin designs (CH-K5001 / K5019 / K5200-2 / K5213 / K5222 / K5223) ready for spec-sheet selection.
  • Materials range from hairline stainless steel through technology board KLS7200-series to artificial marble flooring.
  • Embedded or integrated COP options; bronze, titanium and oak accent finishes available.
  • Gearless PMSM traction with CHRYCE TK-1 damping for low-noise high-rise rides.
CHRYCE Passenger Elevator

Key Features

Six Factory-Finished Cabins

CH-K5001, K5019, K5200-2, K5213, K5222 and K5223 — specified from the sheet, with no bespoke drawings.

TK-1 Sealed-Cabin Damping

CHRYCE TK-1 damping holds vibration and noise down over long mid- and high-rise runs.

Gearless PMSM Traction

Permanent-magnet synchronous drive with no gearbox to service.

Embedded or Integrated COP

Two operating-panel layouts, selectable per model.

Four Cabin Finish Families

Hairline, mirror, bronze and technology board, over PVC or artificial-marble flooring (DB500 / DB521 / DB524).

Compliance & Standards

Independently certified — built to international code.

Designed and type-tested to global lift codes; manufactured under audited management systems at our 80,000 m² Wujiang facility.

  • ISO 9001 Quality Management
  • ISO 14001 Environmental Management
  • ISO 45001 Occupational Health & Safety
  • EN 81-20 European Lift Standard
  • ASME A17.1 North American Standard
  • GB-7588 China National Standard

Common Questions

Frequently asked about CHRYCE Passenger Elevator

  • What is the typical lead time?

    Standard configurations ship 8–12 weeks from order confirmation. Highly customised cabins, oversize cars or non-standard control packages can extend lead time to 14–16 weeks. Our sales team confirms exact timing once specifications are locked.

  • Which international standards does this model meet?

    CHRYCE lifts are certified to the EU Lifts Directive 2014/33/EU: EU type-examination by notified body MIRTEC (0437), certificate LF/A-C-19551/20, examined against EN 81-20:2020 and EN 81-50:2020. The factory holds ISO 9001, ISO 14001 and ISO 45001 system certifications, and additional national approvals are available on request.

  • Can the cabin finishes and dimensions be customised?

    Yes. Cabin walls, ceilings, flooring, handrails and lighting are all configurable from the listed model series, and fully bespoke designs are available on request. Shaft and car dimensions can be adapted within the specified load range — share your hoistway drawings and we will confirm the available envelope.

  • What is included in the warranty and after-sales programme?

    Each unit ships with a 12-month standard warranty covering parts and on-site service against manufacturing defects. Annual maintenance contracts are available globally — quarterly preventive service, 24/7 emergency response and remote IoT monitoring options are included on request.

  • Do you support installation and commissioning overseas?

    Yes. Chryce operates an authorised service network across 40+ countries and supports turnkey installation, commissioning and training. For projects without a local Chryce partner, we dispatch engineers from our headquarters and pair them with local certified contractors.

  • How do I get a formal quotation?

    Use the Request a Quote button at the top of this page or contact our overseas sales team at info@chryce-elevator.com. Share floor count, rated load, speed and any cabin/finish preferences — we typically return a budgetary quotation within one business day.

Other questions? Our engineering team usually replies within one business day.
